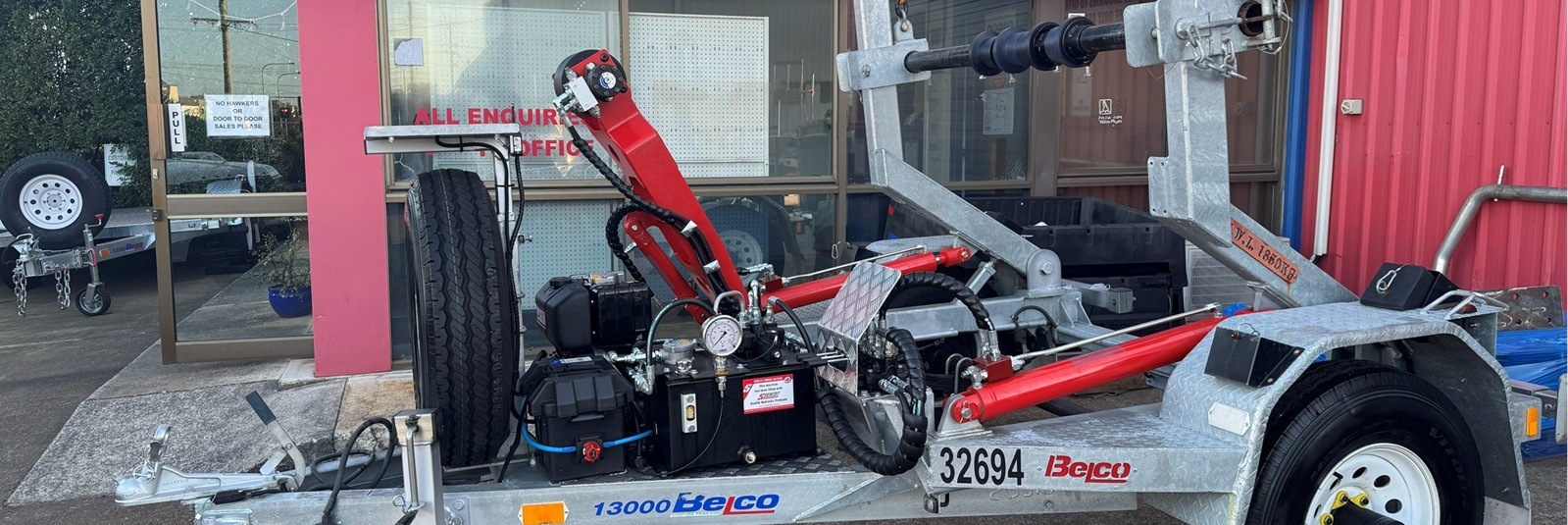

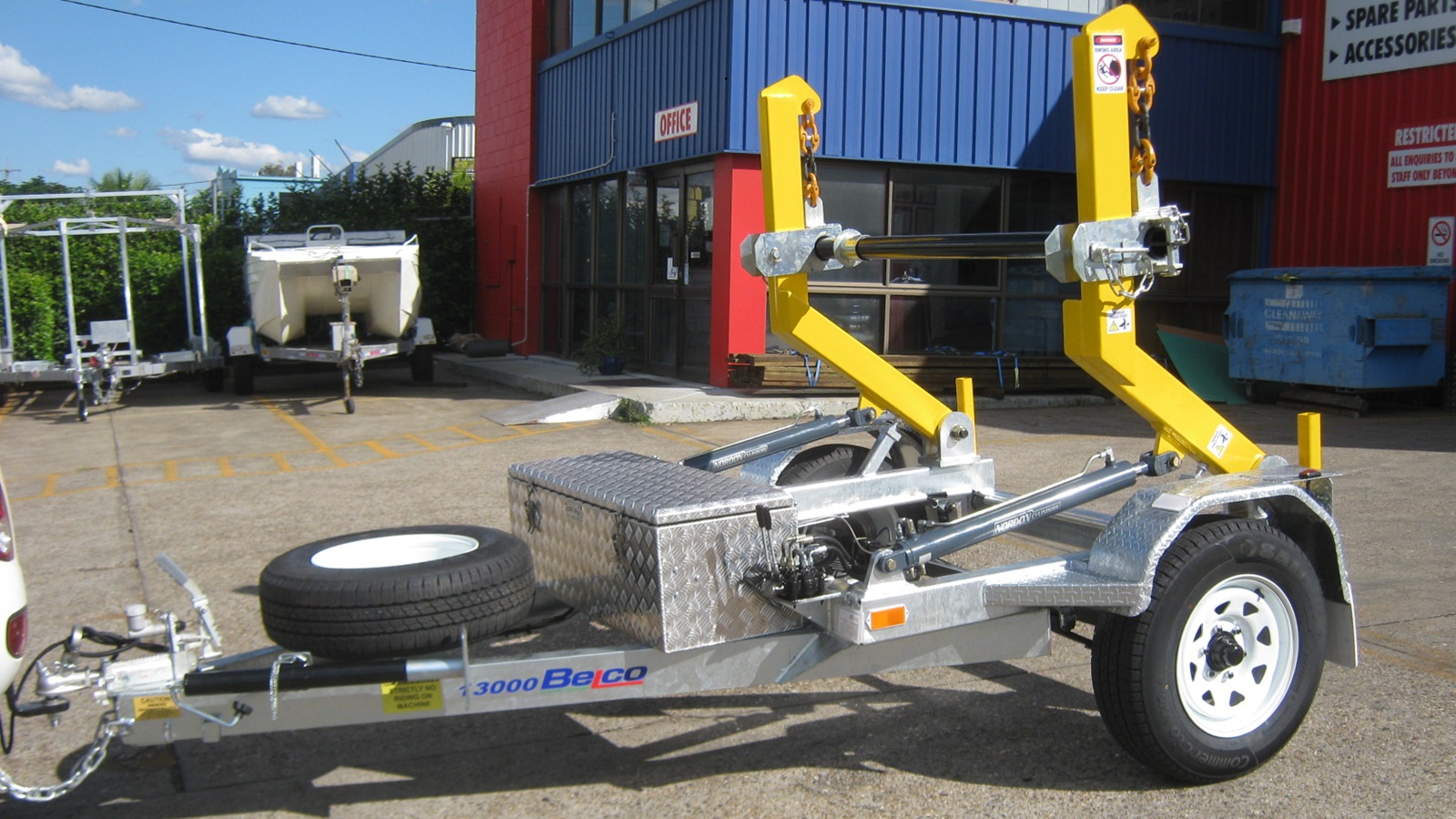

CT200 - 2.0T ATM Single Axle Cable Trailer
The Belco 2T Single Axle Cable Trailer is purpose built for the safe, efficient transport and deployment of cable drums up to 2.2 metres in diameter and 1.5 metres wide.
Designed and manufactured for tough Australian conditions, this trailer combines rugged construction with hydraulic loading arms and an optional diesel powered reversible drum drive to streamline cable handling on-site.
Built to work on Australian Roads
Designed with Cruisemaster RMX suspension and a balanced single-axle layout, the CT200 is straightforward to tow and easy to manoeuvre on tight sites, with self loading capabilities.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliance to ADR/VSB Standard
• Australian designed, engineered and manufactured
• Full after-sales service and support
Key Features

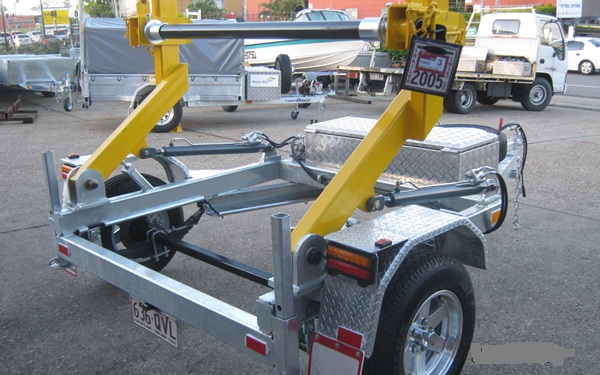

Loading Mechanism
Loading is handled via independently operated, hydraulic powered loading arms. The drum rotates via oil-filled nylon collars supported on a fixed, non-rotating spindle.
Drums up to 1.5 m wide, 2.2m in diameter, and 1 T can be loaded and deployed via this mechanism. Rear drop-down legs provide additional stability during loading operations.

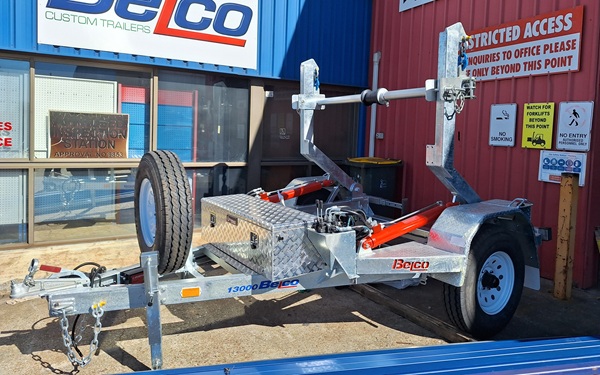

Power and Pay Out/Haul in
12V DC power is the default source to deliver hydraulic power in the base version, this can be upgraded to a 9.5HP diesel engine for loading or becomes the standard with the drum drive option.
When the drum drive/rotator is included in the specification. With the drum drive in place, variable (controlled) deployment speeds of up to 6km/h can be reached.
Operating Controls
Manual controls are located on the trailer, with an optional upgrade to a wired pendant or protective enclosure. Allowing for remote operator use.
The Belco CT200 cable trailer key safety features include over-center valves on the loading arm cylinders, a pressure relief valve, and a priority flow divider for consistent hydraulic flow during multi-function operation.
Operational Features
• Suits cable drums up to (D) 2.2m x (W) 1.5 m
• Reversible hydraulic drum drive with onboard or remote speed control (Optional)
• Hydraulic self-loading arms for safe/efficient drum handling
• Dual-spool control valves for independent arm and drum operation
• Robust hot dip galvanized or painted chassis and 1T payload capacity
• Ridemaster Single Axle suspension with Mechanical brakes
• Base power source 12V battery-powered hydraulics
• Optional diesel-powered hydraulic system with safety flow control and pressure relief
• Twin 10 mm safety chains and LED lighting ADR compliant
Belco Cable Series
CT200 — 2T ATM Single Axle Cable Trailer Specifications
7 Year Structural – Comprehensive coverage on the chassis and drawbar for total peace of mind.
2 Year Body – Coverage for Belco-manufactured body components like ramps, gates, walls, and frames.
1 Year 3rd Party Components – Manufacturers warranty, with Belco’s support through the claim process.
Return-to-Base Support – Fast, efficient warranty service at Belco’s Brisbane facility.
Designed for Work – Warranty applies equally to private and commercial use.
* Maximum cable drum weight impacted by options taken that change tare weight. | Phone: (07) 3490 4500 | belcocustomtrailers.com.au
