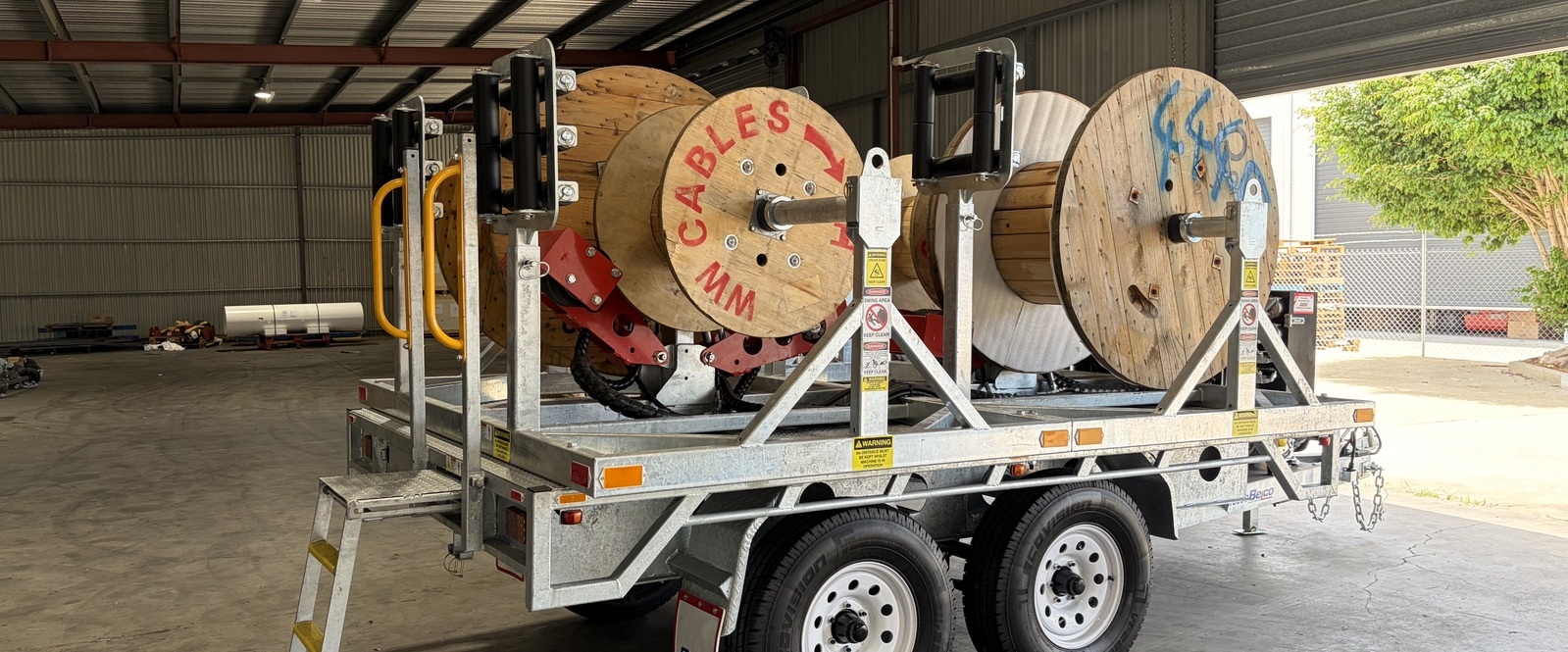

CT35-4D - 3.5T ATM - 4 Drum Cable Trailer

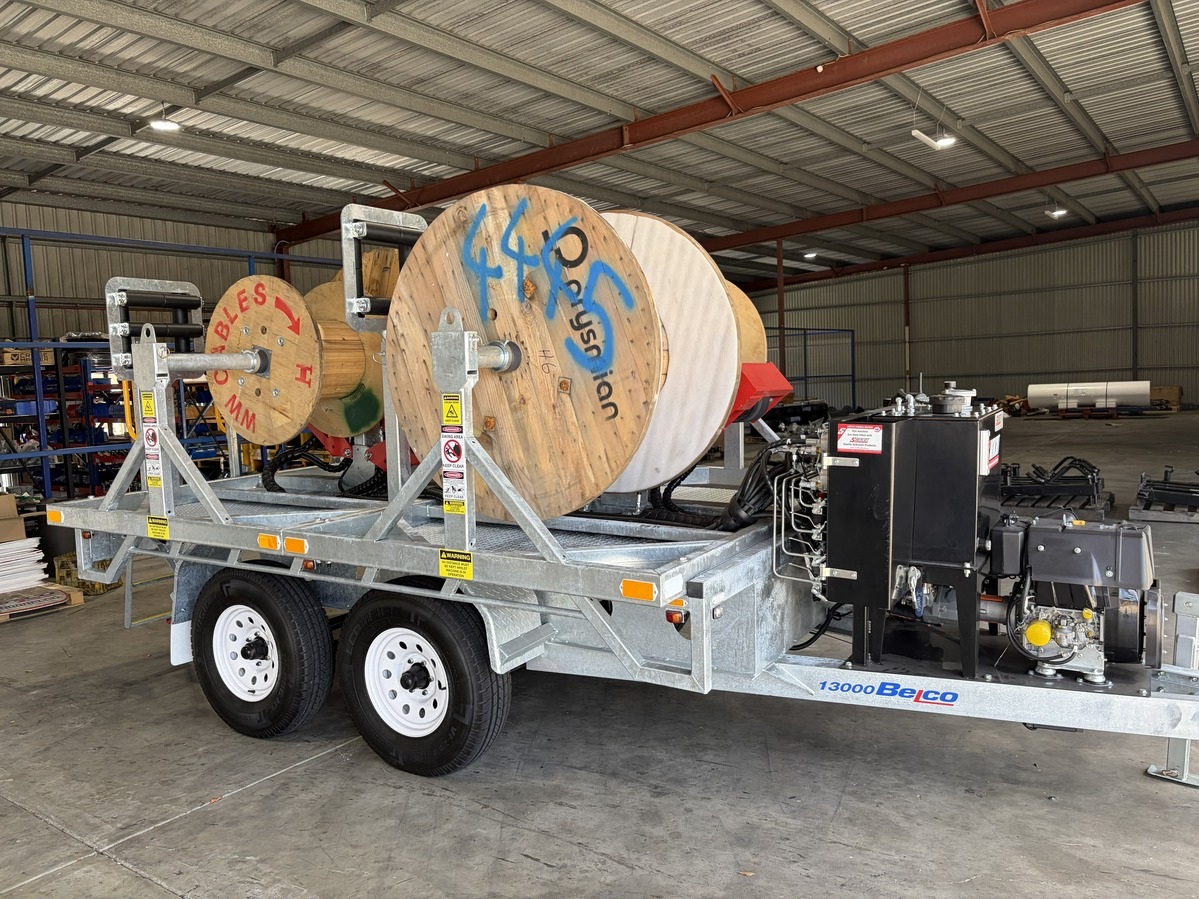

The Belco CT35-4D is a purpose-built solar and wind farm deployment solution with four independently driven cable drums on a road-registerable 3.5T ATM flattop, powered by a diesel hydraulic pack and controlled via wireless belly
pack.
Each drum runs at variable speed in either direction with pay out or haul in — in any combination, without stopping the system. Built for installations where multiple cable runs of differing lengths must deploy simultaneously from a single staging point. Hot dip galvanised throughout. Under 2,500mm wide. Towable by a 4WD.
Built to deploy, not just transport
Four hydraulically driven drums on a road-registerable flattop, each controlled wirelessly, purpose-built to feed multiple cable runs across a solar or wind farm from a single staging point.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliance to ADR/VSB Standard
• Australian designed, engineered and manufactured
• Full after-sales service and support
Key Features

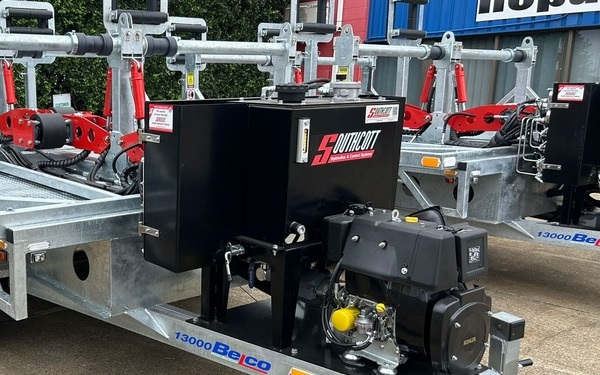

Diesel Powered Hydraulics
- Kohler diesel engine — air cooled, key start / stop
- Load sensing piston pump — 40 L/min @ 130 bar
- Engine integral 4L fuel tank
- 75L powder-coated steel hydraulic tank
- Filler breather, sight glass, return filter
- 4 × accumulators, 4 × pressure gauges, 4 × ball valves
- Walvoil sectional inlet valve — 4 motor circuits
- Pilot-operated check valves per circuit — load holding
- Hydraulic circuit reference: SE00569-000

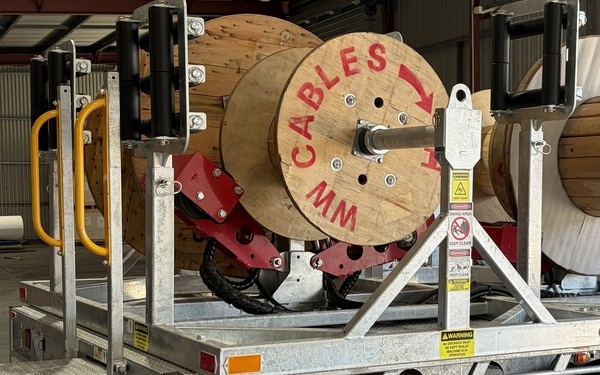

Drum Drive – Pay Out/Haul In
- 4 × hydraulic orbital motors — individual circuit per drum
- 210mm urethane rubber drive roller per drum
- Bi-directional — pay out and haul in on any drum
- Variable speed — proportional control via remote
- Speed range: 0 to 10 km/h (nominal deployment 4–5 km/h)
- Designed for drums from 500mm to 1,200mm diameter
- Tension-set / release per drum for controlled deployment
- Drive roller engagement / disengagement per drum (ARM ON/OFF)

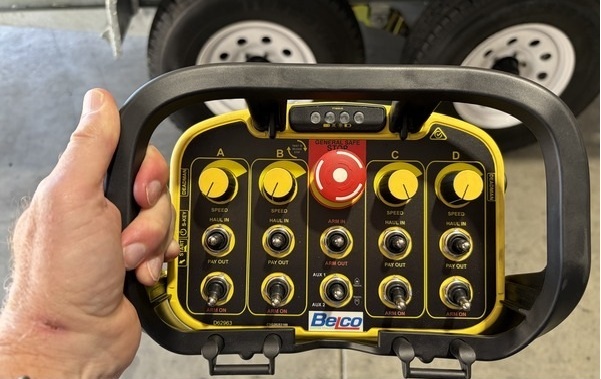

Operating Controls
- Programmable wireless radio belly pack — SQ1225
- 4 independent drum stations (A, B, C, D)
- Per drum: ARM ON/OFF · HAUL IN · PAY OUT · SPEED dial
- Central E-STOP button — all drums
- Global ARM IN / ARM OUT — simultaneous engagement
- Bluetooth-capable remote system
- Wireless range suitable for field deployment operations
- All pressure inputs (speed ranges) teachable
Operational Features
• 4 drums — up to Ø1,200mm × W1,000mm, 750kg each
• Individual hydraulic drive per drum — Pay Out & Haul In, any
combination
• Variable speed payout — up to 10 km/h, typical deployment 4–5 km/h
• Kohler diesel engine, load sensing pump — 40 L/min @ 130 bar
• Wireless belly pack with per-drum speed and direction control
• Road registerable — under 2,500mm wide, ATM 3.5T, ute-towable
• Telehandler-loaded with fixed spindles and 120mm drum collar retention
• Hot dip galvanised finish throughout
• 6 year warranty on drawbar and chassis
• Engineered to AS3990 & AS1554 SP
