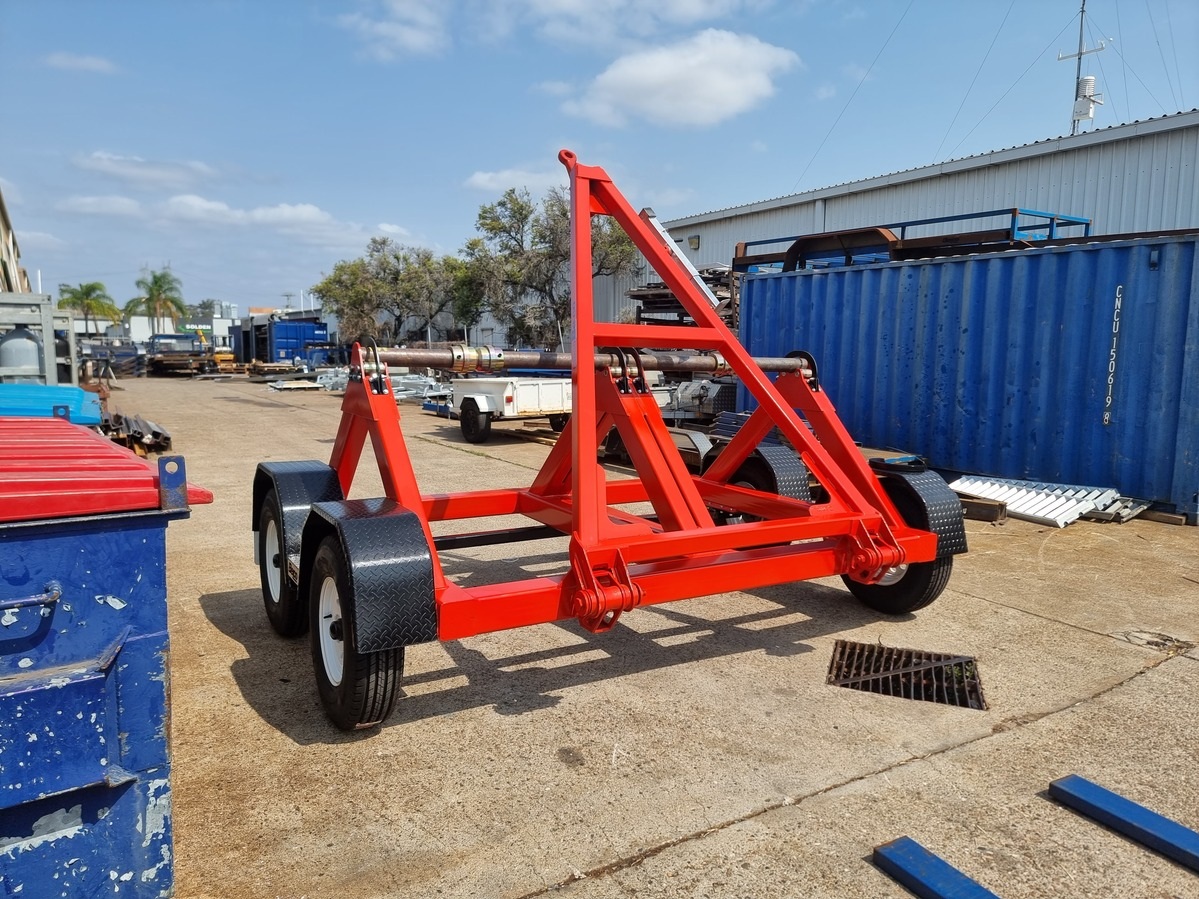

CJTT50 - 5T ATM Dual Drum Tag Trailer
The Belco CJTT50 is a purpose-built 5T ATM dual drum tag trailer designed for the simultaneous transport and over-the-back deployment of two cable drums. Built to AS3990 and AS1554 Part 1 Grade SP.
It features a heavy-duty fixed-axle chassis with manual spindle loading and zinc plated locking and centring collars. Suited to operations where a reliable, no-frills cable transport solution is required
Two drums. One tough trailer

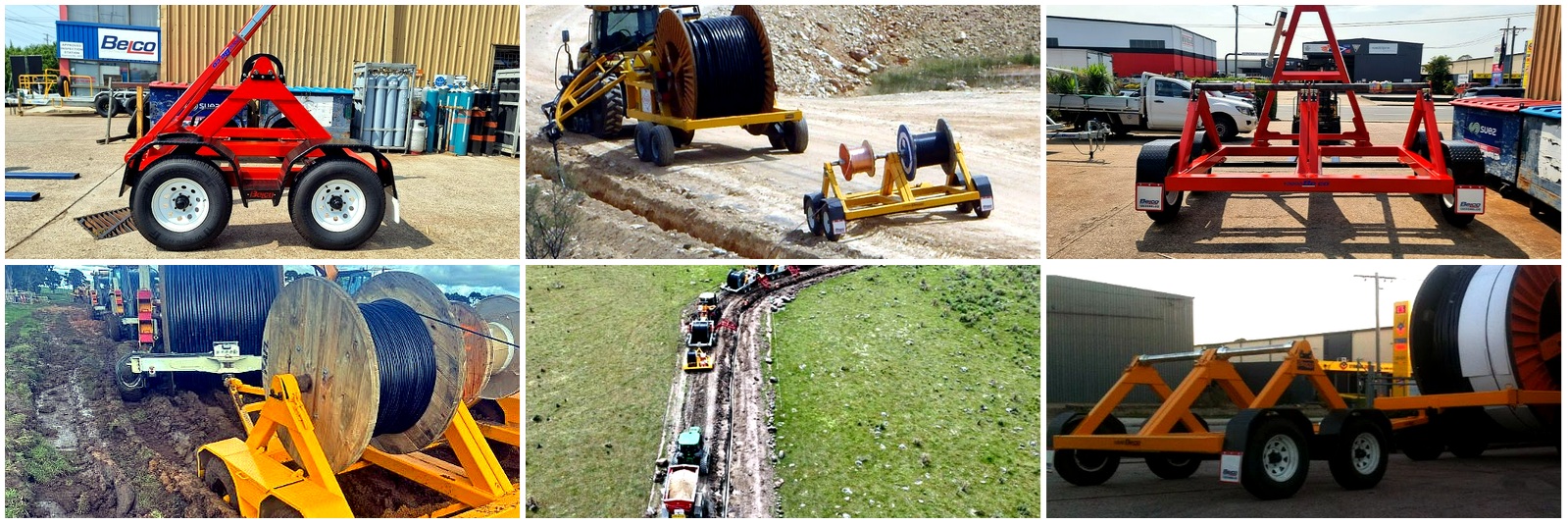

The CJTT50 carries two cable drums at once — up to 3 tonnes across both — on a heavy-duty fixed-axle chassis built to work in the mud and muck of a live site, yet still easy to tow and position in tight spots.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliance to ADR/VSB Standard
• Australian designed, engineered and manufactured
• Full after-sales service and support
Operational Features
• Carries two cable drums simultaneously — up to 2.2m
diameter x 1.3m wide each
• ~3T payload capacity across both drums
• Manual loading via 2x spindles with zinc plated locking
and centering collars
• Over-the-back cable deployment
• Fixed axles, 3T rated each — 150 x 150 x 5mm RHS
chassis
• Class 2.5 sandblast prep, epoxy zinc primer, Weathermax
HBR acrylic polyurethane finish
• 6-year warranty on drawbar and chassis
• Built to AS3990 & AS1554 Part 1 Grade SP
Not the Trailer solution you were looking for?
See our range of Cable Deployment solutions here, or contact us for a custom solution.
