Cable Splicing Habitat

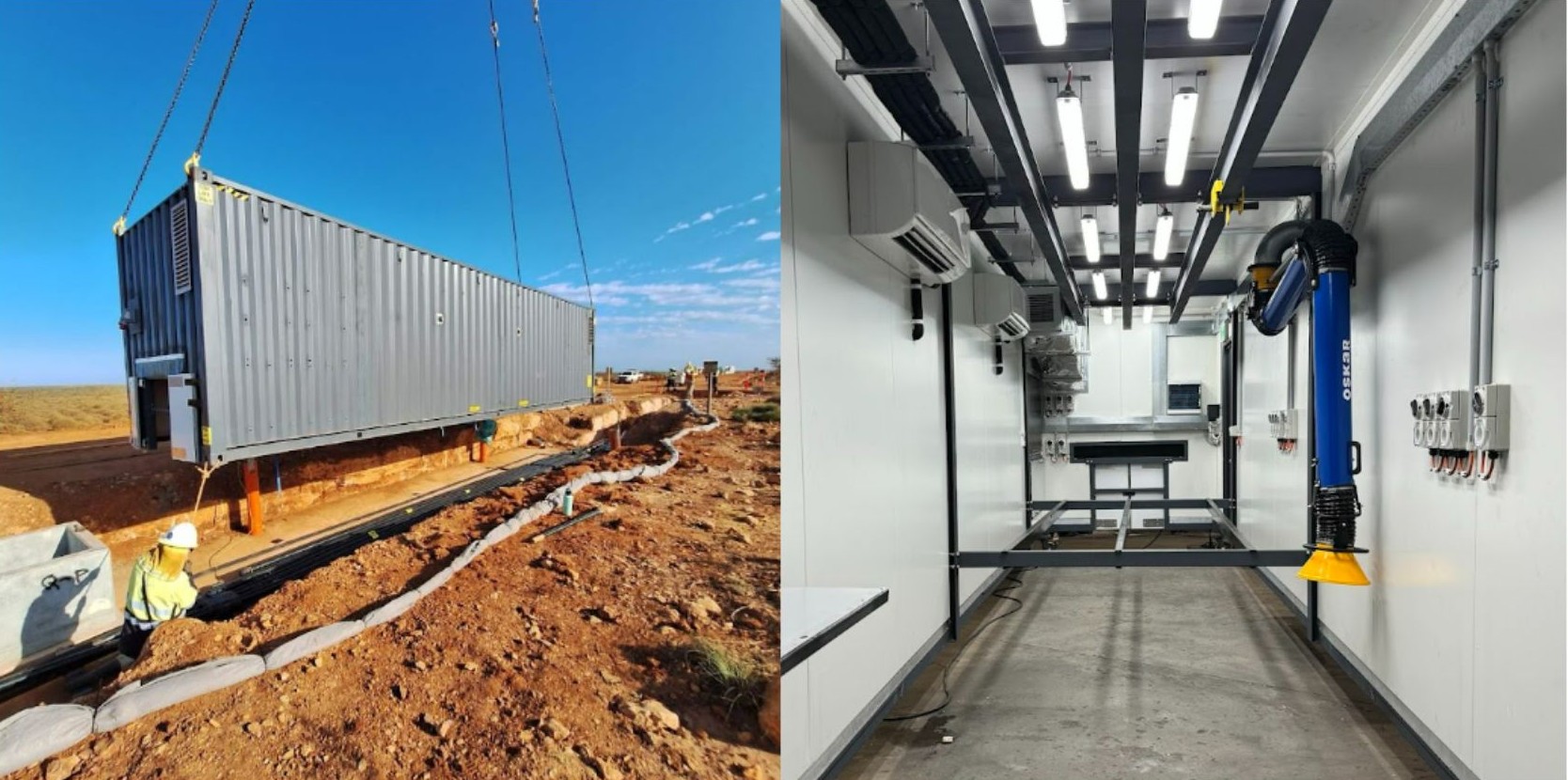

The Belco Cable Splicing Habitat is a purpose-engineered, field-deployable cable jointing enclosure built for high-voltage splicing operations. Engineered in a modified 40′ ISO shipping container.
The unit delivers a climate-controlled, fume-managed, and structurally certified workspace capable of housing full HV able jointing crews and equipment. The habitat features a 3-bay overhead monorail system
Built to work on site
The Belco Cable Splicing Habitat is designed as a purpose-engineered, field-deployable cable jointing enclosure built for high-voltage splicing operations.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliance to ADR/VSB Standard
• Australian designed, engineered and manufactured
• Full after-sales service and support
Key Features

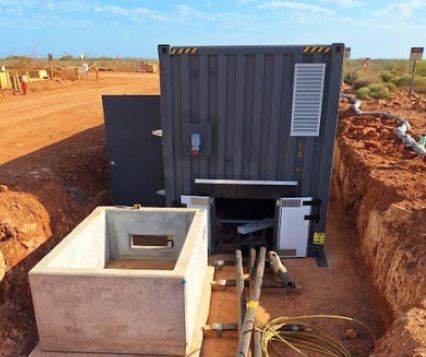

Certified for Field Deployment
The Splicing Habitat is built on a modified 40′ ISO shipping container, independently assessed and RPEQ-certified using full Finite Element Analysis.
The structure is verified for reach stacker and side loader crane operations, road transit at 0.8g longitudinal and 0.5g transverse, and wind loading to Region D conditions. Designed for trench-side deployment over a concrete slab with cable entry at both ends

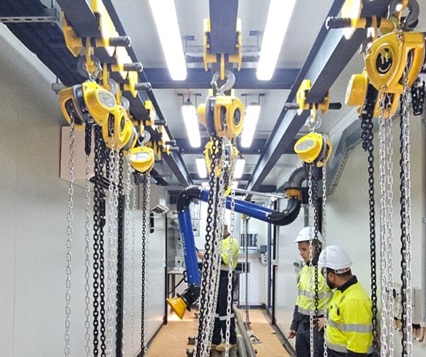

Cable Handling and Workspace
The interior features three full-length 200mm I-beam monorail bays with 18 chain block and push trolley hoist stations, rated at 500kg per bay and 1,000kg total per monorail, classified A02 to AS5246.1.
Cold room insulated sandwich panel lines all walls, the ceiling, and access doors to maintain a controlled internal environment. Barn doors at each end provide sealed cable access, with dedicated personnel doors at both entries.

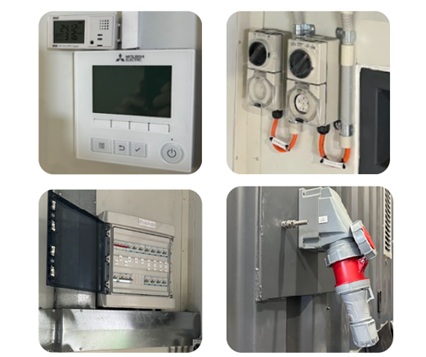

Operating Controls
The habitat runs dual 10kW hi-wall split systems with a variable-speed outside air fan delivering 140 L/s during normal activities and automatically ramping to 350 L/s during lead jointing.
A 160mm articulating fume extraction arm with HEPA H12 and G4 pre-filtration manages airborne contaminants. A Bluetooth temperature and humidity data logger provides real-time environmental monitoring.
Operational Features
• FEA-verified for lifting, transit (0.8g longitudinal / 0.5g transverse), wind, and seismic (EDC II) load cases
• 3 x overhead monorail bays — rated 500kg per bay / 1,000kg total per monorail, classified A02 per AS5246.1
• 18 x chain blocks and push trolleys — AS1418.2 compliant Cold room insulated sandwich panel lining — walls, ceiling, and all access doors
• Dual 10kW hi-wall split system air conditioning with Bluetooth temperature and humidity data logging
• Variable-speed outside air supply fan — 140 L/s normal / 350 L/s during lead jointing, spring-close damper on power loss
• Articulating fume extraction arm — HEPA H12 + G4 pre-filter, VSD controlled, interlocked with outside air fan
• Fully rated WP electrical distribution — multi-pole board, RCBO circuit protection, 63A CEE 5-pin generator inlet
• Barn doors and personnel access doors at each end — fully sealed for dust and weather ingress
• Top-lift and side-loader rated — cross braces fitted at end openings and monorail portals for all lifts and movements
• Optional 46kVA soundproofed diesel generator — up to 21hr tank, ATS capable, <68dBA at 7m
