CJ20R - 26.5T ATM Tandem Axle Cable Jinker - Up to 3 road train

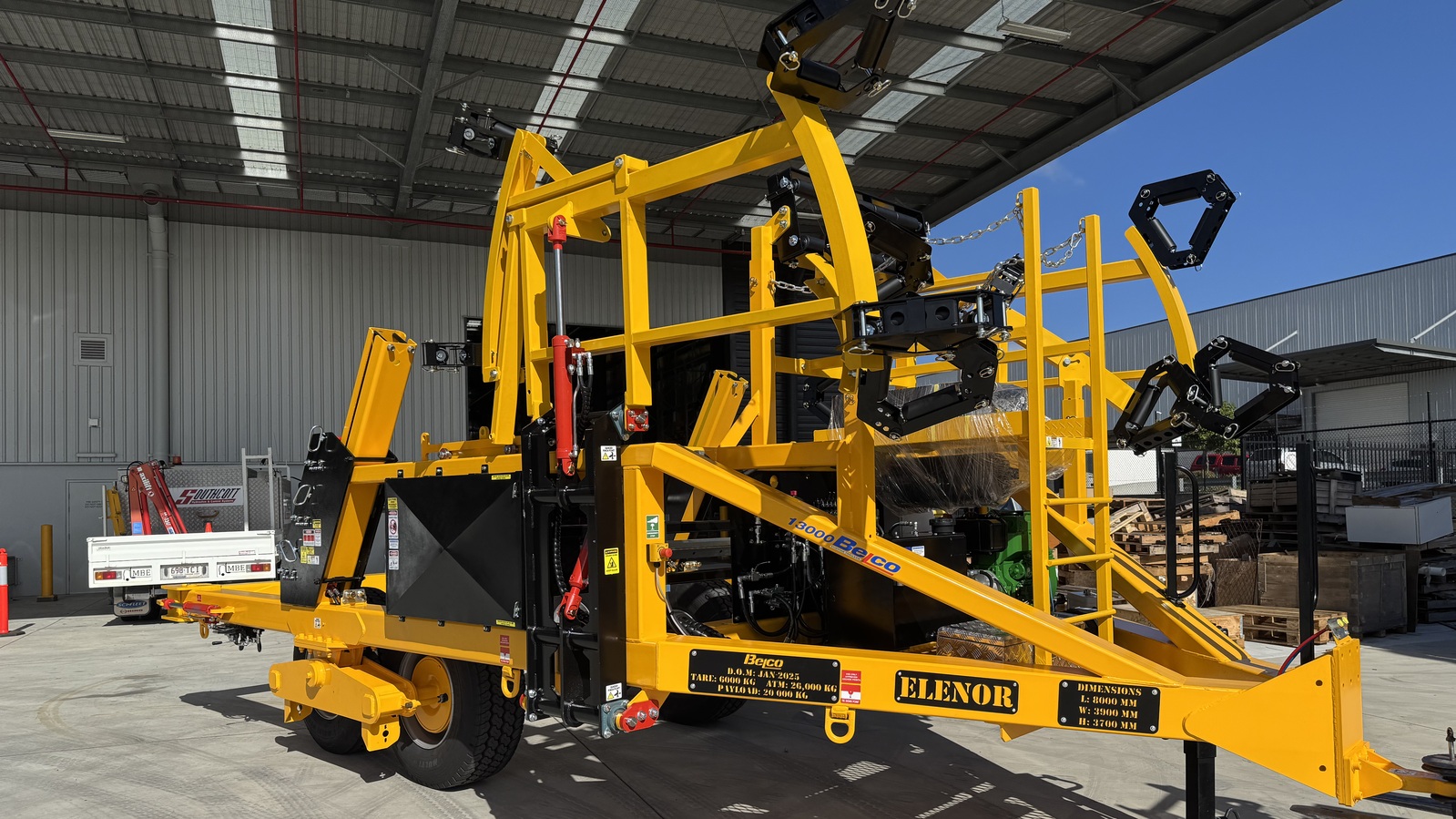

The Belco CJ20r – 20 T Cable Drum Jinker is designed for the efficient and secure transportation and deployment of cable from large cable drums (up to 20T), making it ideal for private and government industrial/infrastructure applications.
Engineered in Brisbane, this 20T Cable Drum Trailer offers unmatched durability and performance in the toughest conditions and is designed for 3 x Trailers to be trained together enabling maximal volume / speed of cable deployment.
Built to work in the toughest conditions
The CJ20r is a Brisbane-engineered 20T cable drum trailer built for durable, secure cable transport and deployment, trainable in sets of three for maximum speed and volume across industrial and infrastructure applications.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliance to ADR/VSB Standard
• Australian designed, engineered and manufactured
• Full after-sales service and support
Key Features
Transport Ready
The patented design allows for the wheels to be rotated inside the Chassis for transport keeping the width under 3.5m.

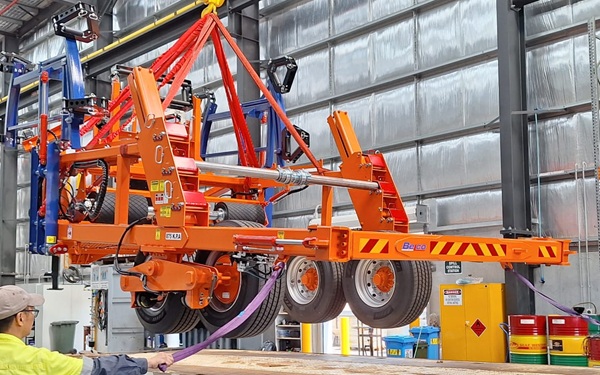

Integrated, rated lift points simplify any required lift planning.

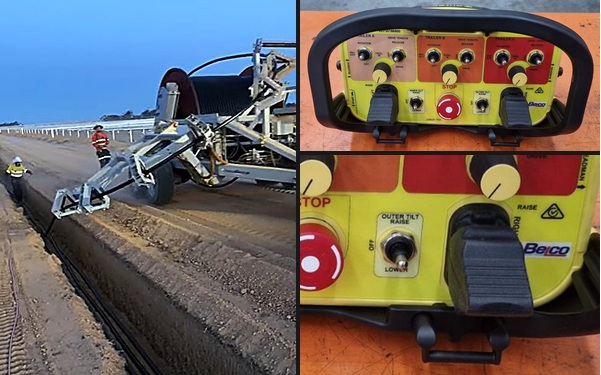

Wireless Controls
Every CJ20 is operated by a wireless Bluetooth pendant, giving a single operator complete command of up to three trailers — pay-out, haul-in, drum drive, rotation, lift and tilt — from a safe distance.
Dual dead man triggers and an emergency stop keep every deployment controlled, precise and clear of the load.

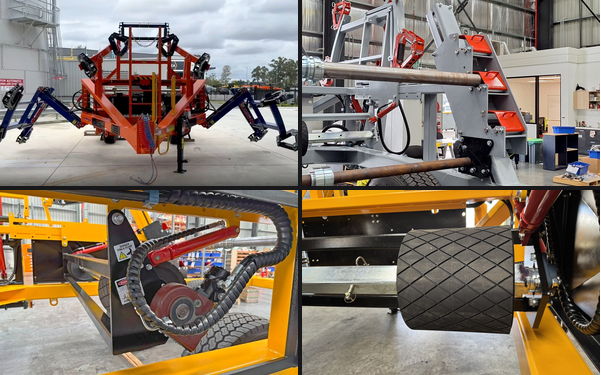

Loading and Deployment Systems
The unit has a number of features which improve productivity, safety and efficiency when loading and deploying cable.
- Independent self loading cradles to handle heavy lifts on uneven ground
- Adjustable width industrial grade vulcanized rubber rollers
- Dual articulated deployment arms for maximum control
- Gearbox driven proportional speed control for Pay Out and Haul In functions
Operational Features
• Cable drums up to (D)4.2m x (W)2.4m
• Road train ready (x3)
• Multi-directional drive mechanism
• Up to 4 kms per hour cable delivery
• Diesel-powered hydraulic system
• Wireless remote operation
• Side arm or over the back deployment
• Fold in wheels for transportation
• Walking beam suspension
• Self loading drum drive
• Cable tensioning
• Modular design and custom colors
CJ20r — 20T Cable Drum Trailer Specifications
