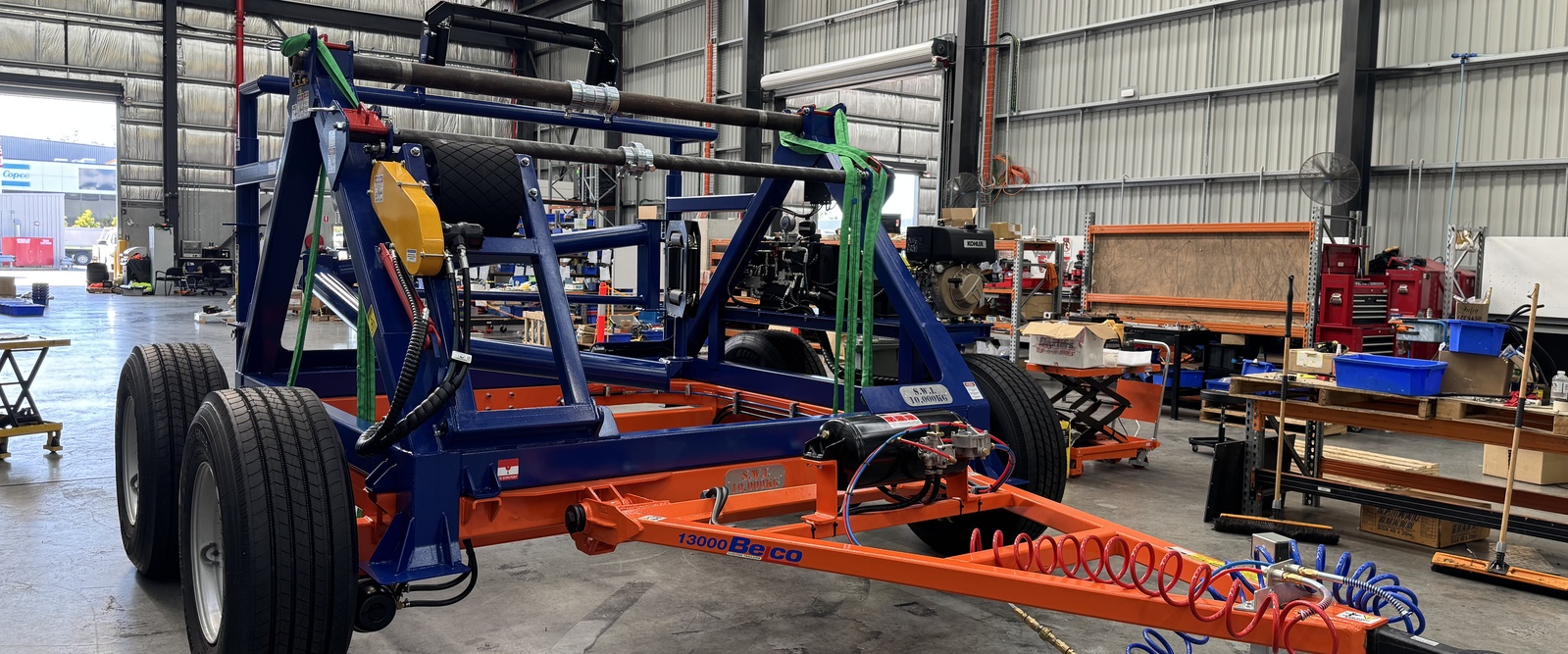

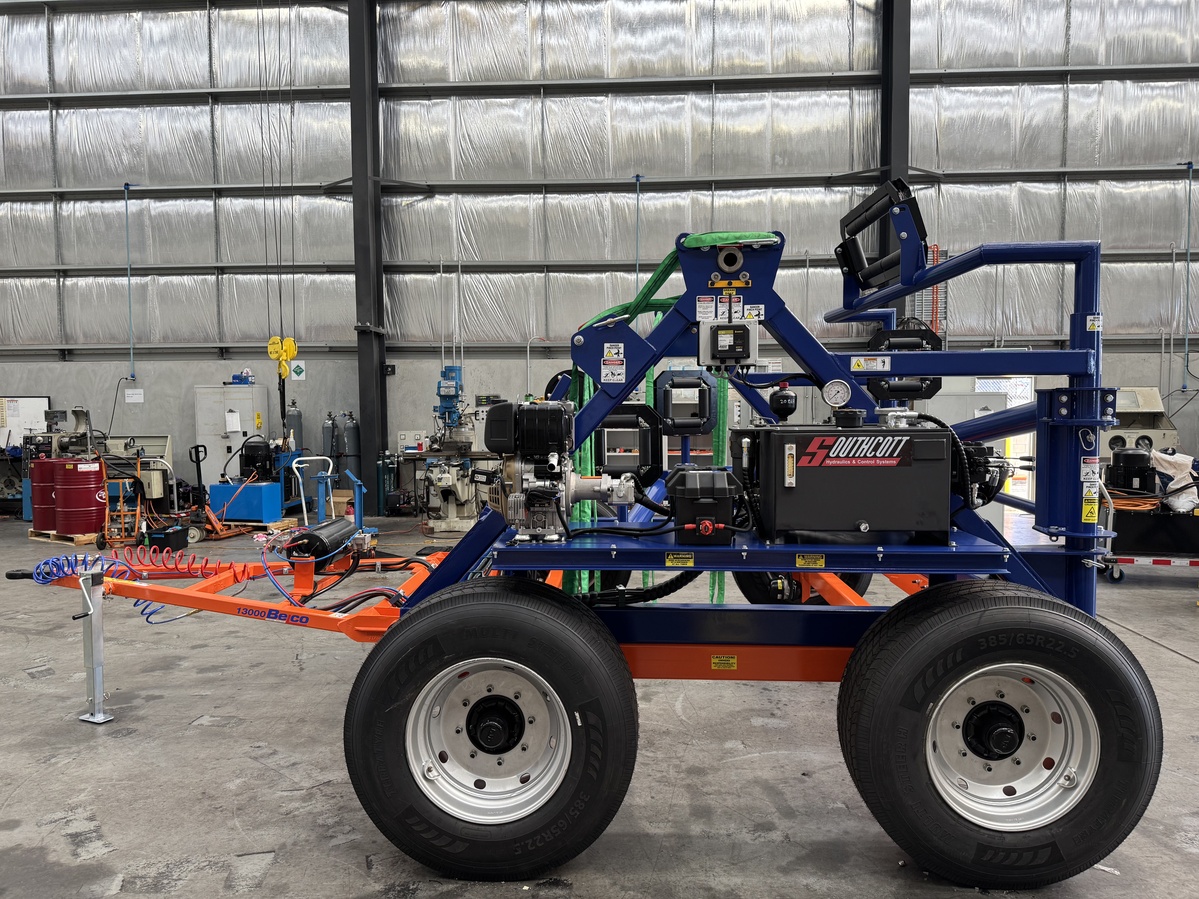

CST10r - 10T Cable Stand Jinker
The Belco CST10r – 10T Cable Stand Trailer is a modular cable handling solution that combines a robust off-road trailer with a removable drum stand. Designed for utility yards, mines and civil crews.
It offers safe and efficient transport and controlled cable deployment for cable drums up to 3.4 m in diameter, 2.2 m wide, and 10 tonnes weight.
The system features an adjustable drum mounting frame, variable speed belt driven drum drive, and a removable stand that can be rotated in 90° increments or operated completely standalone.
A manually adjustable slew arm deployment system allows cable to be fed either inline or across trench. Can be deployed as a single or a road train of up to 3 trailers.
Built to work in Australian Roads
Built in Queensland to AS3990 on a heavy-duty 150 x 100 x 6 RHS chassis, the CST10r is rated for low-speed off-road towing across the rough access roads of Australian job sites. Self-contained diesel hydraulics, off-road tyres and a 7-year structural warranty keep it deploying cable where lighter imported gear can’t follow.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliant to Australian Standards
• Australian designed, engineered and manufactured
• Full after-sales service and support
Key Features

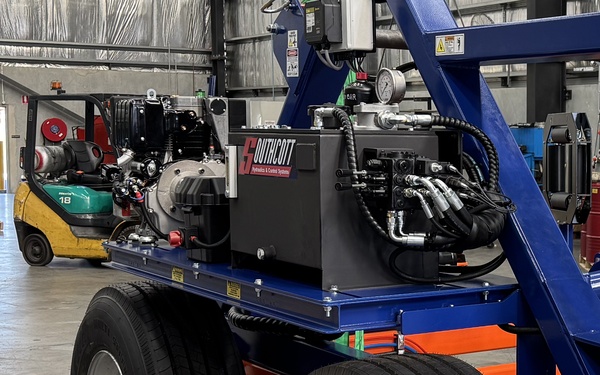

Diesel Powered Hydraulics
- Reliable Kohler KD15-440 engine — air-cooled diesel engine
- Produces 25 L/min @ 140 bar — Suitable for drive, tension, and deployment functions
- Electric start/keyed ignition — Easy operation & improved safety
- Fully enclosed hydraulic circuit — Includes return filter, tank, breather, hoses, and fittings
- Low noise and fuel consumption — Ideal for prolonged operation in civil environments
- Vibration-isolated frame — extends system life

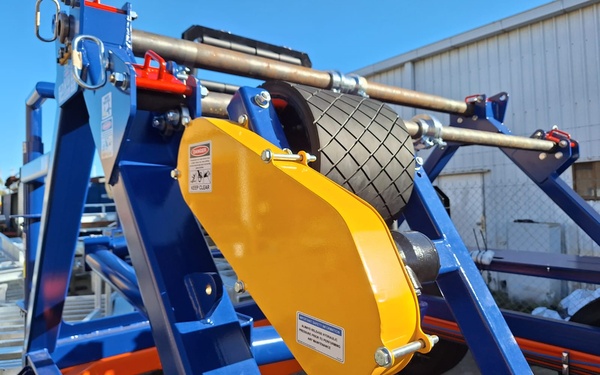

Powered Pay Out/Haul In (option)
- 14M HTD timing belt system — Positive engagement with no slip
- Synchronous drive — Keeps tension consistent during deployment
- Bi-directional operation — Easily managed by wireless remote
- Pay Out as 0–5 km/h — Designed for typical deployment speeds
- Manual tension control — Set-and-go for experienced operators
- Belt design rated to 354.7 Nm torque — Allows control of heavy
- 10T drums with low strain Belco engineered vulcanized rubber for grip and durability

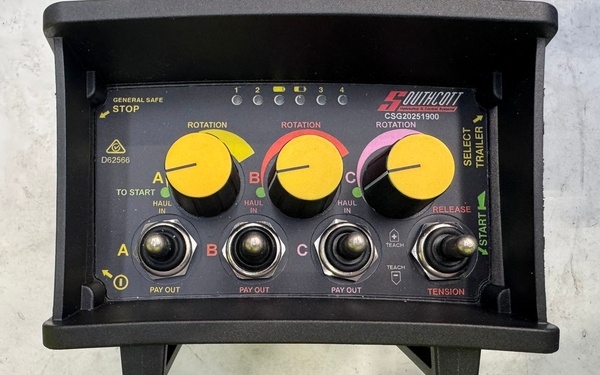

Operating Controls
- Wireless belly pack and manual controls for:
- Proportional drum rotation (pay-in / pay-out)
- Drum drive tension (on/off)
- Deadman/E-Stop saftey features
- (Road Train Controls shown in picture)
Operational Features
• Suits cable drums up to Ø 3.4 m x W 2.2 m
• Onboard diesel powered hydraulics
• Gross drum weight up to 10T
• Removable cable stand (usable on/off trailer)
• Adjustable drive roller, belt/pulley driven to Pay Out & Haul In.drum operation
• Manual side arm deployment (1 x slew arm at rear)
• Compatible with fork-load drum cradle, or sling loading
• Designed for off-road, low-speed towing (20 km/h max,
derated when loaded)
• Engineered to AS3990 & AS1554 SP
