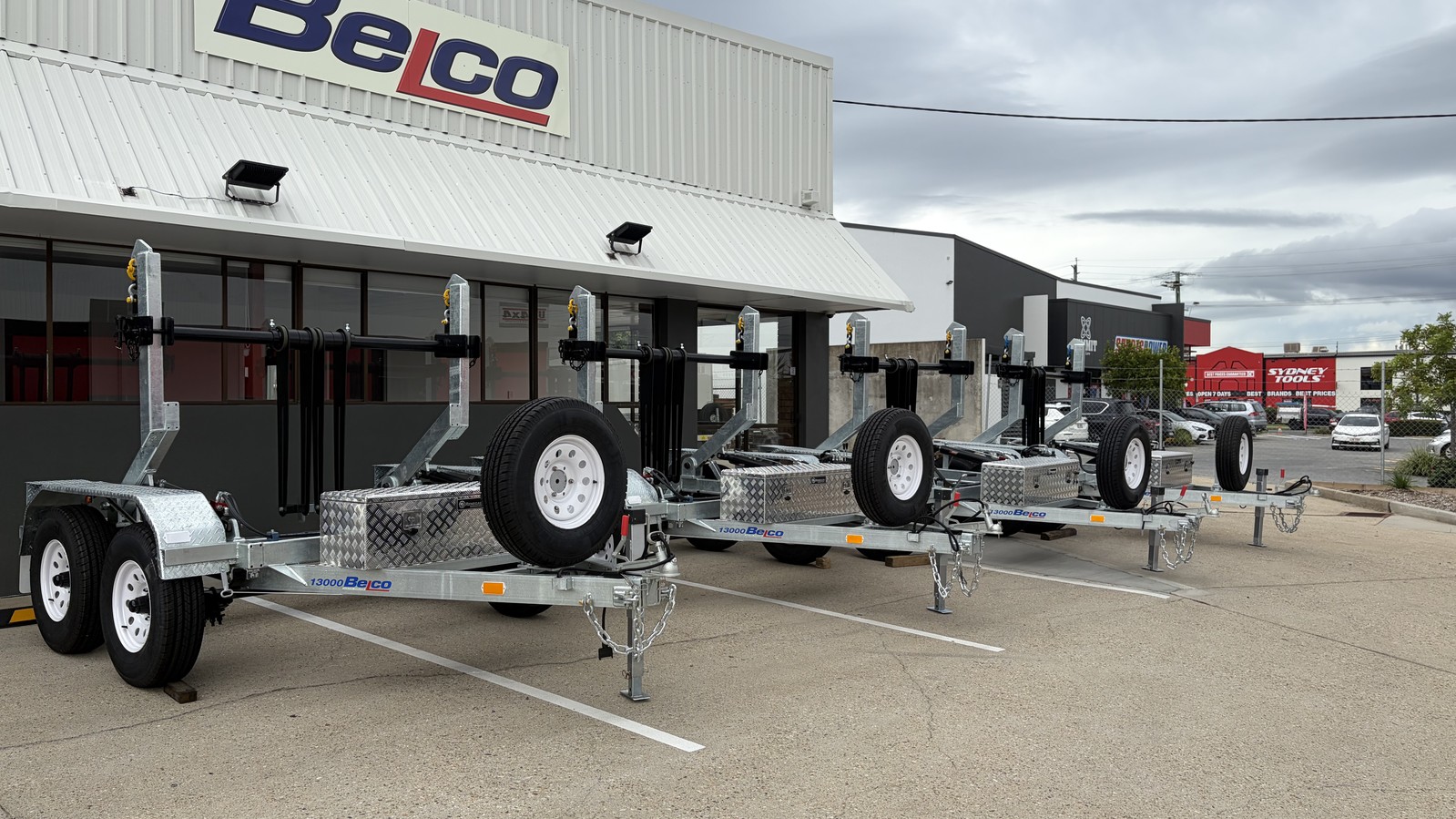

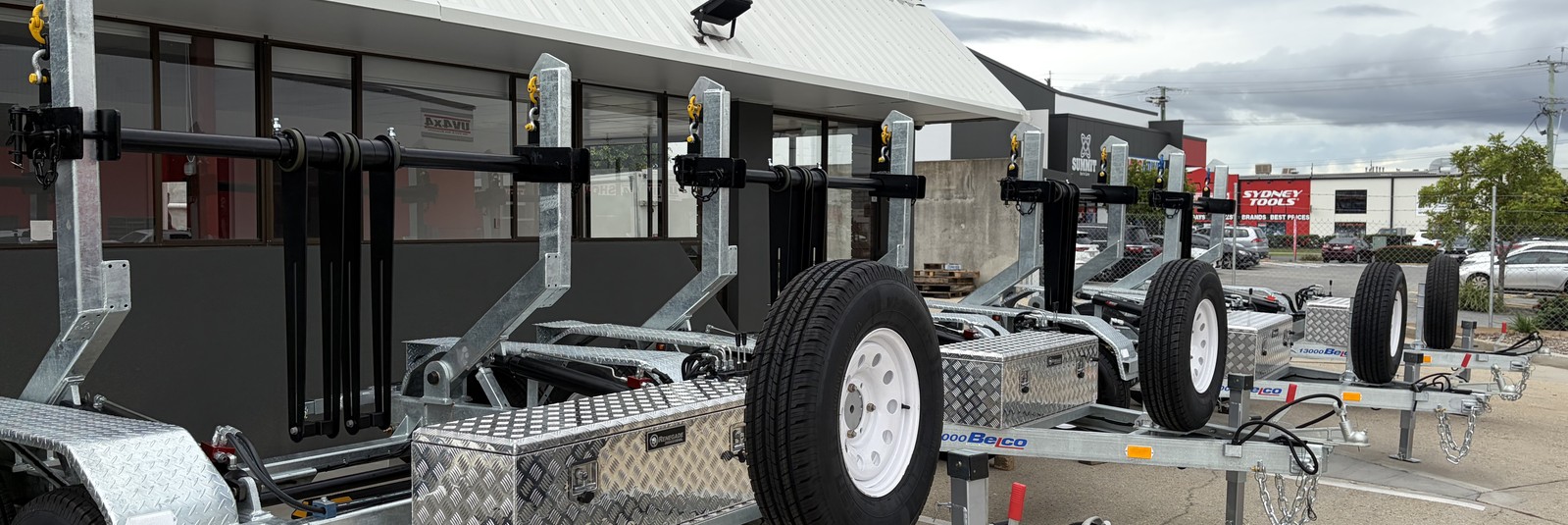

CT350 - 3.5T ATM Tandem Axle Cable Trailer
The Belco 3.5T Tandem Cable Trailer is purpose built for the safe, efficient transport and deployment of cable drums up to 2.4 metres in diameter and 1.5 metres wide.
Designed and manufactured for tough Australian conditions, this trailer combines rugged construction with hydraulic loading arms and an optional diesel powered reversible drum drive to streamline cable handling on-site.
With manual controls or optional Bluetooth pendant, it offers flexible and reliable performance for cable operations where simplicity and safety are key.
Built to work on Australian Roads
Designed with Ridemaster Loadshare and a balanced tandem-axle layout, the CT350 is straightforward to tow and easy to manoeuvre on tight sites.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliance to ADR/VSB Standard
• Australian designed, engineered and manufactured
• Full after-sales service and support
Key Features

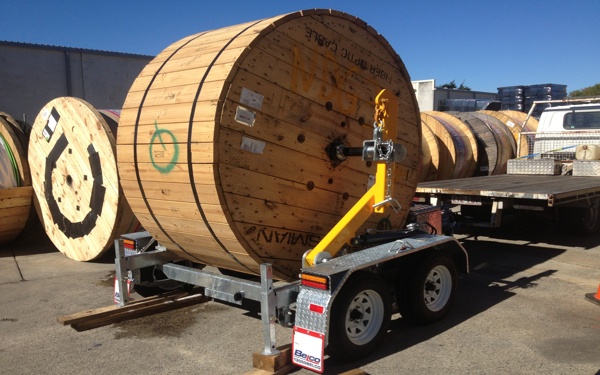

Loading Mechanism
Loading is handled via independently operated, hydraulic powered loading arms. The drum rotates via oil-filled nylon collars supported on a fixed, non-rotating spindle.
Drums up to 1.5 m wide, 2.4 m in diameter, and 2.5 T can be loaded and deployed via this mechanism. Rear drop-down legs provide additional stability during loading operations.

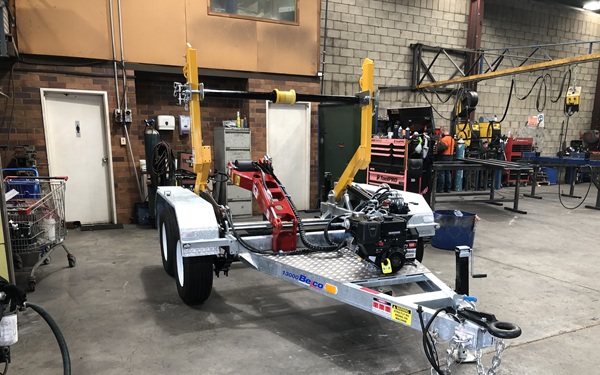

Powered Pay Out/Haul In (option)
A 12V battery is used to deliver hydraulic power in the base version, this can be upgraded to a 9.5HP diesel engine for loading or the engine becomes standard when the drum drive/rotator is included in the specification.
With the drum drive in place, variable (controlled) deployment speeds of up to 6km/h can be reached. Allowing operational safety for the operator.

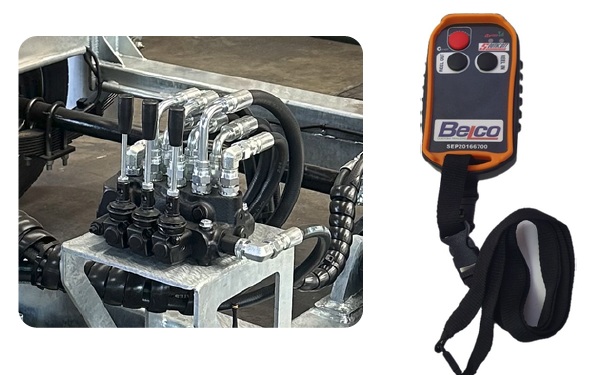

Operating Controls
Manual operational controls are located on the trailer, or can be upgraded to a Bluetooth pendant control. Safety features include over-center valves on the loading arm cylinders to prevent uncontrolled descent.
A priority flow divider to maintain consistent hydraulic flow for safe and efficient multi-function operation. With optional manual controls.
Operational Features
• Suits cable drums up to (D) 2.4 m x (W) 1.5 m
• Reversible hydraulic drum drive with onboard or remote speed control
• Hydraulic self-loading arms for safe/efficient drum handling
• Dual-spool control valves for independent arm and drum operation
• Robust hot dip galvanized or painted chassis and 3.5T ATM
capacity
• Ridemaster loadshare suspension with Dexter electric brakes
• Base power source 12V battery-powered hydraulics
• Optional diesel-powered hydraulic system with safety flow
control and pressure relief
• Twin 13 mm safety chains and LED lighting
• ADR compliant
