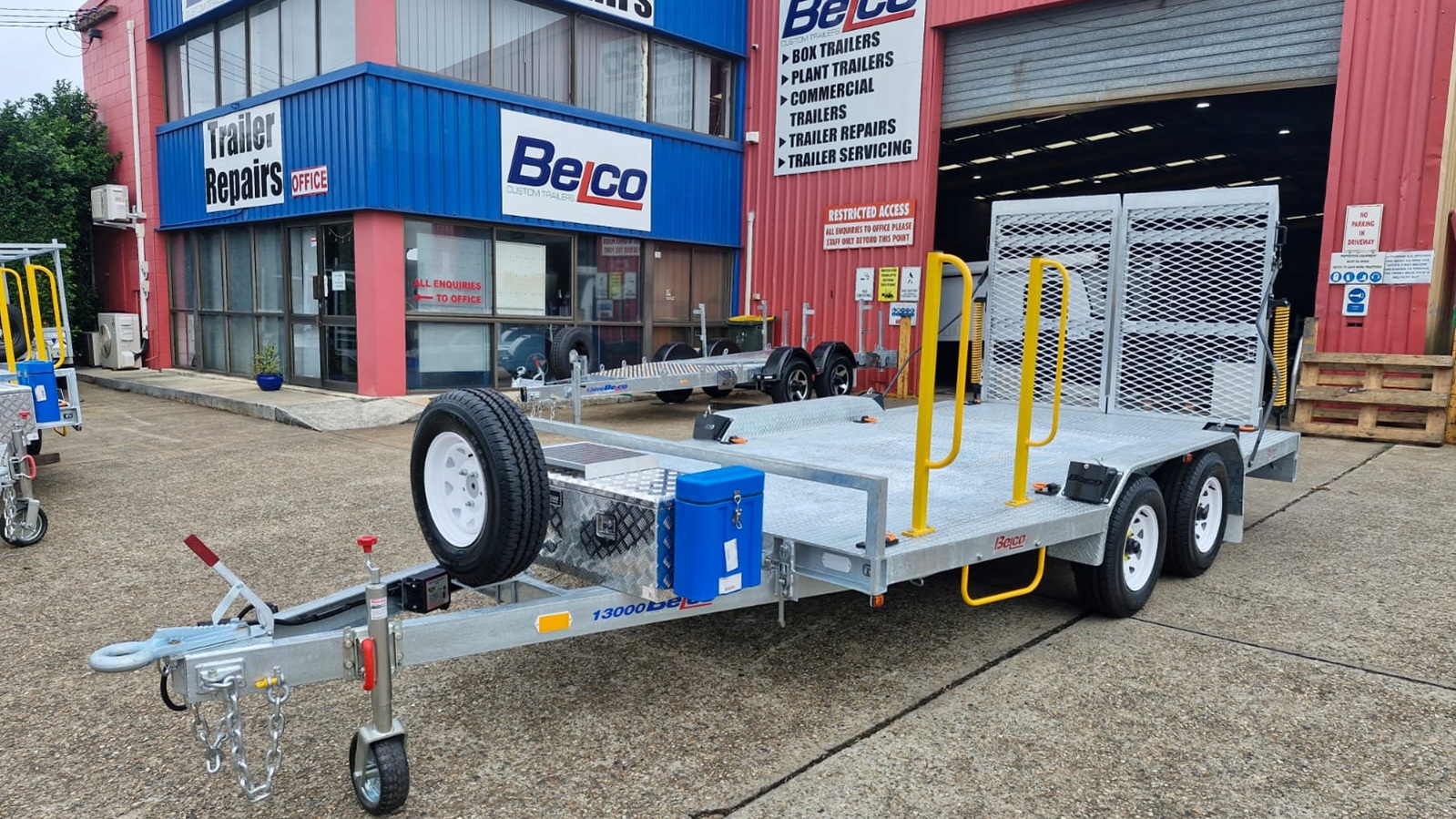

LIM350 - 3.5T ATM Tandem Axle Mower Trailer
The LIM350 is design and built with councils, contractors, and parks crews in mind. All who shift ride-on mowers every day. The LIM350 is rated to 3.5T ATM with a hot dip galvanised chassis,.
With full-width spring-assisted ramps, and a manual tilt drawbar — engineered for high-frequency loading without the wrestling match. Clean deck, integrated storage, no wasted componentry.
Built to work on Australian Roads
A purpose-built workhorse for Australian conditions. Designed with a Rock Roller Load Share Suspension perfect for industrial use.
Why Belco ?
• 7 Year Warranty – Drawbar and Chassis
• 2 Year Warranty – Belco manufactured components
• 1 Year Warranty – OEM Warranty/third party components
• Engineered and compliance to ADR/VSB Standard
• Australian designed, engineered and manufactured
• Full after-sales service and support
Key Features

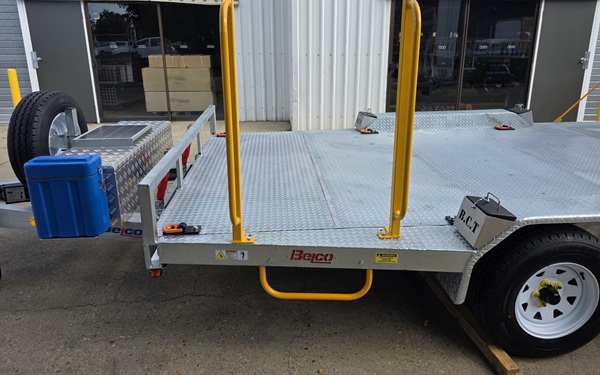

Safety Features
Operator safety is designed in. With three points of contact via integrated handrail and step access. Spring-assisted full-width alloy mesh ramps keep loading angles low and predictable.
Rear stabiliser legs eliminate trailer rebound during loading. The checker plate deck provides positive grip underfoot, and 8 rated tie-down points secure machinery against shift, in transit.

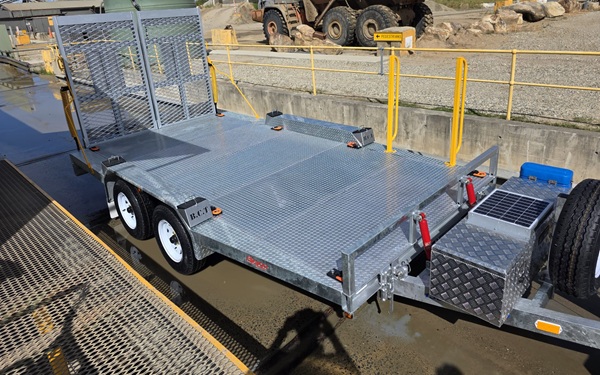

Operation Benefits
Designed around the productivity of the crew, not the patience of the operator. The tilt drawbar drops the loading angle for low-clearance ZTRs and out-front rotaries, cutting setup time at every stop.
Onboard storage keeps straps, chocks, and tools at hand — no return trips to the ute. Galvanised throughout for minimal maintenance and a long service life.

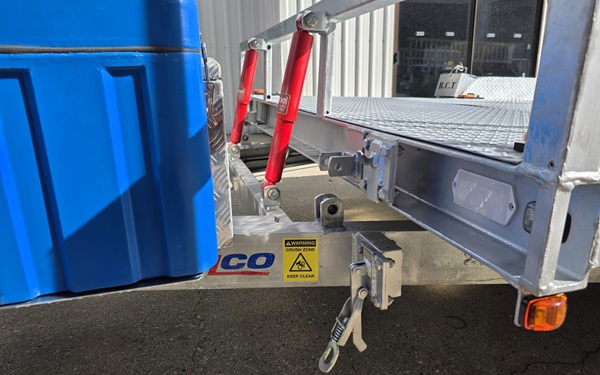

Design Considerations
The Belco LIM350 is engineered for the operators who can’t afford a trailer that lets them down. Whether you’re running a single unit on a remote site or a fleet across multiple depots.
Every LIM350 is built to the same specification: heavy-duty galvanised construction, standardised componentry, and full support from Belco. Engineered and built in Australia.
Operational Features
• Suits articulated or zero turn mowers and related equipment
• Tilt Drawbar with cam locks to adjust load angle
• Access handrails and step
• Spring assisted alloy mesh ramps with lifting handles
• Rear stabiliser legs
• ADR compliant for Australian road use
• Heavy-duty hot dip galvanized chassis with 3.5T ATM capacity
• Rock roller suspension. 4-ton rated springs for smooth
transport
• Toolbox for onboard storage
• Twin 13 mm safety chains, 10″ Swing Away Jockey Wheel and full side steps
• 8x rated Tie Downs
Belco Industrial Series
LIM350 — 3.5T ATM Tandem Axle Light Industrial Mower Trailer Specifications
7 Year Structural – Comprehensive coverage on the chassis and drawbar for total peace of mind.
2 Year Body – Coverage for Belco-manufactured body components like ramps, gates, walls, and frames.
1 Year 3rd Party Components – Manufacturers warranty, with Belco’s support through the claim process.
Return-to-Base Support – Fast, efficient warranty service at Belco’s Brisbane facility.
Designed for Work – Warranty applies equally to private and commercial use.
* Maximum payload impacted by options taken that change tare weight. | Phone: (07) 3490 4500 | belcocustomtrailers.com.au
